What Are the Main Components of A Solar Power System?

The era of affordable and sustainable energy is here. Among renewable sources, solar power systems have emerged as a promising solution for a greener future. By harnessing sunlight to generate electricity, they offer a clean, reliable, and renewable energy source that can power homes and businesses efficiently.

But how do these systems function? What are their core components, and how do they work together to maximize efficiency and energy production? In this article, we will explore the key elements of a solar power system. We'll look at different types of solar panels, inverters, batteries, and more, while highlighting the benefits of going solar—from reducing your carbon footprint to cutting energy bills over time. So, let’s dive in!

Key Takeaways

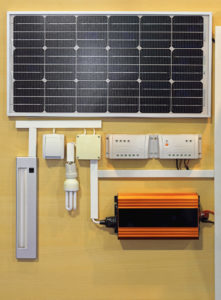

• A solar power system includes essential parts like photovoltaic panels, inverters, mounting structures, batteries, charge controllers, and a solar meter.
• Solar panels come in various types, such as monocrystalline, polycrystalline, and thin-film. Each has its own efficiency and use case, depending on the project's needs.
• Performance depends on component choices, location, weather, and energy demands. Making informed decisions ensures optimal solar energy benefits.

Component 1: Solar Photovoltaic Panel

Ever noticed the reflective surface of solar panels? These are made up of multiple photovoltaic cells that convert sunlight into electricity. A collection of these panels forms a solar array, which generates power for homes and businesses.

Solar panels are typically mounted on roofs for maximum sunlight exposure. However, they can also be installed on vehicles or ground-mounted depending on the application. The angle and position are crucial to ensure maximum energy absorption throughout the day.

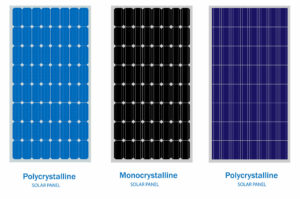

Solar panels are made from different materials, with crystalline silicon being the most common. They fall into three main categories:

Monocrystalline Silicon Panels

These panels are known for their high efficiency and durability. Made from a single silicon crystal, they perform well in low-light conditions and are often used in commercial projects.

Polycrystalline Silicon Panels

Produced from multiple silicon crystals, these panels are more cost-effective but slightly less efficient than monocrystalline ones. They’re popular for residential installations due to their affordability.

Thin-film Solar Cells

These are the oldest type of solar cells, made using amorphous silicon. While they are flexible and lightweight, they are less efficient compared to crystalline panels. They are ideal for portable applications like RVs and camping setups.

Component 2: Solar Inverters

Solar inverters play a critical role in converting direct current (DC) from solar panels into alternating current (AC), which is what most household appliances use. This conversion is essential for making solar energy usable in everyday life.

There are several types of inverters, each suited for different applications:

String inverter

These are commonly used in residential settings. They connect multiple panels in a string and convert the DC power into AC. However, if one panel underperforms, it can affect the entire system.

Microinverters

Attached to each individual panel, microinverters allow each panel to operate independently. This makes them ideal for areas with partial shading, as the performance of one panel doesn’t impact others.

Power Optimisers

These devices optimise the performance of each panel before sending the power to a central inverter. They help mitigate the effects of shading and improve overall system efficiency.

Component 3: Racking and Mounts

In addition to the technical components, the racking and mounting structure is vital for ensuring the panels receive maximum sunlight. These structures securely install the panels on roofs, grounds, or vehicles.

The quality of the material used in the rack construction is crucial. Since solar panels are exposed to the elements, the gear must be strong and resistant to corrosion.

Mounts vary based on the installation area:

Roof mounts

These are the most common type, attached directly to the roof. They are sturdy and suitable for both residential and commercial installations.

Ground mounts

Designed for open spaces, these mounts allow for adjustable angles to maximise sun exposure. They are often used in larger-scale solar projects.

Pole mounts

These are ideal for saving space. They consist of poles that hold the panels and can be adjusted to follow the sun’s movement for better efficiency.

Component 4: Solar Batteries

Solar panels generate electricity during the day, but batteries are needed to store excess energy for use after sunset or during cloudy days. They are also important for grid-tied systems that send surplus power back to the grid.

Battery types include lithium-ion, lead-acid, and flow batteries, each with its own advantages and costs. Lithium-ion is currently the most popular due to its efficiency and longevity.

Component 5: Charge Controllers

If your solar system includes batteries, a charge controller is essential. It regulates the flow of electricity from the panels to the battery, preventing overcharging and extending battery life.

There are two main types: MPPT and PWM. MPPT is more advanced and efficient, especially in variable light conditions, while PWM is simpler and more cost-effective.

Component 6: Solar Power Meter

A solar power meter helps track energy production and consumption, allowing you to monitor savings and system performance. It’s particularly useful for net metering systems where excess energy is sent back to the grid.

Case Study: Optimising a Residential Solar Power System

Background

Solar Panels Network specialises in delivering customised solar solutions that enhance energy efficiency and sustainability. In this case study, we examine a recent residential project where we designed and installed a tailored solar system for a homeowner seeking to reduce reliance on the national grid and lower energy costs.

Project Overview

The homeowner wanted a sustainable way to cut energy expenses and reduce their environmental impact. Located in a suburban area with ample sunlight, the property was an ideal candidate for a solar power system. Our team conducted a detailed site assessment to determine the best configuration, considering factors like roof orientation, available space, and energy usage patterns.

Implementation

To ensure peak performance, we implemented the following components:

• Solar Photovoltaic Panels: Installed 20 monocrystalline panels for high efficiency and durability.
• Solar Inverters: Used a string inverter with power optimisers to handle partial shading from nearby trees.
• Racking and Mounts: Installed corrosion-resistant roof mounts for stability and long-term performance.
• Solar Batteries: Added a lithium-ion battery bank to store excess energy for nighttime and cloudy days.
• Charge Controllers: Integrated MPPT controllers to optimise battery charging and prevent overcharging.
• Solar Power Meter: Installed a meter to monitor energy generation and usage, helping the homeowner track savings.

Results

• Energy Independence: The system reduced reliance on the grid by 75%, significantly lowering energy bills.
• Efficient Energy Use: The battery and meter enabled better utilisation of stored energy, even during peak times.
• Environmental Benefits: The system helped reduce the household’s carbon footprint, supporting the homeowner’s sustainability goals.

Summary

This case study highlights the importance of selecting the right components for a solar power system. By choosing high-quality panels, efficient inverters, and robust battery solutions, we delivered a system that not only met but exceeded the homeowner’s expectations. At Solar Panels Network, we continue to provide innovative and sustainable energy solutions to help our clients transition to greener, more cost-effective power sources.

Expert Insights From Our Solar Panel Installers About the Main Components of a Solar Power System

Understanding the differences between monocrystalline and polycrystalline panels is essential. Each type has unique benefits, and choosing the right one can greatly impact the system’s efficiency and output.

Senior Solar Engineer

Solar inverters are the heart of any solar system, converting DC to AC power. Choosing microinverters or power optimisers can boost efficiency, especially in shaded areas.

Lead Solar Installation Specialist

Selecting the right batteries and charge controllers ensures that the energy collected is stored and used effectively. This is especially important for off-grid systems or in regions with frequent outages.

Solar Systems Consultant

Discover the Power of Solar with Solar Panels Network

Are you exploring solar installations? Look no further than Solar Panels Network, the UK’s trusted partner in harnessing the sun’s potential. Our commitment goes beyond installations—we aim to transform how homeowners and businesses across the UK think about and use energy. By choosing us, you’re not just reducing your carbon footprint; you're making a smart financial decision that offers long-term savings. Contact us today and start your solar journey.

Final Thoughts

Solar power systems are becoming increasingly popular due to their cost-effectiveness and sustainability. Whether you're setting up a small DIY project or a large commercial installation, understanding the components is crucial for success.

The choice of components affects the overall performance of your solar setup. Factors like location, environment, and energy needs also play a significant role in how well your system functions. Taking the time to research and understand each part ensures you get the most out of your investment.

With this knowledge, you can make informed decisions that lead to greater efficiency, reliability, and long-term savings. Embrace the power of solar and take the first step toward a cleaner, greener future.
